Ratex J Chamber

For the test of subsystems and with the increasing interest in cubesats small versatile vacuum chambers are becoming more interesting for testing. This increasing interest in small chambers allows a quick turn around time for the tests and in case of our Ratex-J chamber it is also possible to connect a big window to observe the item under test.

Technical specifications

Dimensions Chamber (inside)
2 tubes crossed with $150 mm$ diameter and $280 mm$ length each
Pressure
<$10^{-6} mbar$
Temperature
Room temperature
Logging
Vacuum Flanges
$1$ DN 160 ISO-K
window ($1$ DN 160 ISO-K)
$1$ Pressure sensor (DN 160 ISO-K)
Vacuum Feed Throughs
List of possible connectors available on request
Dimensions Mounting Plate
Custom mounting plates required
Material Mounting Plate
Pattern Mounting Plate
Optional Equipment
Residual gas analyzer (will influence the testing)
Extension tube for DN 160 ISO-K with length “xx mm)

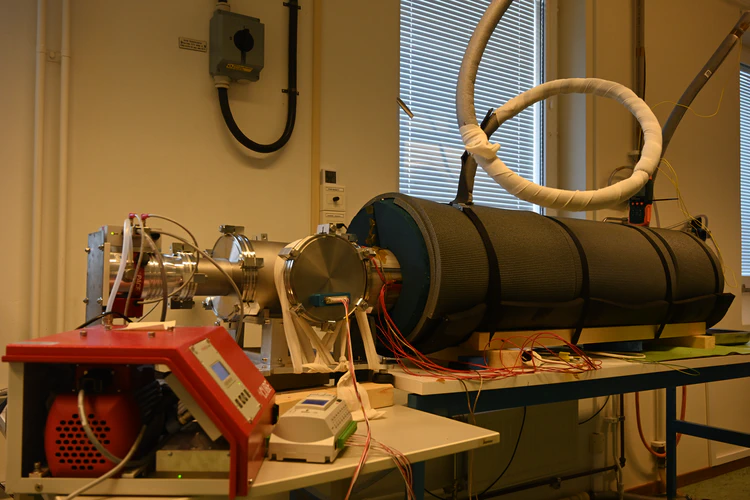

Stainless steel tube with multiple feed through flanges on the left. The pipe continues on the right but is covered with thick black insulation. Liquid nitrogen inlet and outlet pipes are visible on the top. A white data logger and a red vacuum pump are visible in the foreground.
Ratex-J chamber
