Vibration Testing

Vibration testing is used to simulate the launch ambiances to the unit under test. This ensures that the rocket’s payload can survive the launch and reach orbit without its functioning being impaired. IRF Kiruna operates in close collaboration with the Swedish Space Corporation (SSC) and Luleå University of Technology (LTU) in this field.

The shaker used at IRF is a Sentek Dynamics M4040A-PA140 System.

Technical specifications

Dimensions shaker
head: $400 mm$ diameter
head expander: $630 mm$ diameter
sliding table $800 mm x 800 mm$ diameter
Max force
Sine: $39.20 kN$
Random: $39.20 kN$
Shock: $78.40 kN$
Frequency range
$5 Hz - 2200 Hz$
Max static payload
$500 kg$
Max velocity
$2 m/s2
Logging
DJB Instruments A-123-B
DJB Instruments A-120-V
Material Mounting Plates
Aluminum
Pattern Mounting Plate
head: M10 holes in star shape
head expander: M10 holes with pattern depending on location
sliding table: M10 holes with pattern depending on location
Pressure
Atmosphere
Temperature
Room temperature
Optional Equipment

For more information regarding the detailed mounting pattern please contact us.

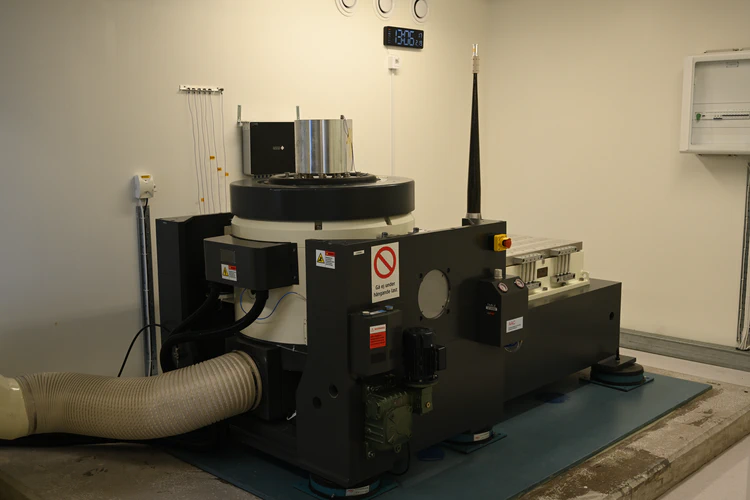

Large shaker in a room. It is currently in the Z direction. A test article is placed on the armature. A large pipe carrying air is visible on the bottom left.
Sentek Dynamics M4040A-PA140 shaker in Z-configuration with test article attached

Photos: Philipp Wittmann, IRF
